环境

  • 操作系统: CentOS7.9，关闭 firewalld 和 selinux

  • Redis: 5.0.14

  • master 实例

    • 10.0.4.110:6371
    • 10.0.4.110:6372
    • 10.0.4.110:6373

  • slave 实例

    • 10.0.4.111:6371
    • 10.0.4.111:6372
    • 10.0.4.111:6373

编译 redis server

  • 在 CentOS7.9 测试服务器上下载、编译

    1
2
3
4

    curl -LO http://download.redis.io/releases/redis-5.0.14.tar.gz
tar zxf redis-5.0.14.tar.gz
cd redis-5.0.14
make

  • 抽取安装文件

    1
2
3
4
5
6

    mkdir -p /opt/redis/{bin,conf}
cp src/{redis-server,redis-cli,redis-benchmark} /opt/redis/bin/
cd /opt/redis/bin
ln -s redis-server redis-check-aof
ln -s redis-server redis-check-rdb
ln -s redis-server redis-sentinel

  • 创建 /opt/redis/conf/redis-6379.conf，常用配置如下

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

    bind 0.0.0.0
protected-mode no
port 6379
daemonize yes
supervised no
pidfile log/redis-6379.pid
loglevel notice
logfile log/redis-6379.log
always-show-logo no
#save ""
save 900 1
save 300 10
save 60 10000
dbfilename dump.rdb
dir db-6379
maxclients 8192
maxmemory 6442450944
#requirepass xxxx
#masterauth xxxx
#cluster-enabled yes
#cluster-config-file nodes-6379.conf
maxmemory-policy volatile-random
appendonly no

  • 创建 /opt/redis/conf/redis-637{1..3}.conf

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

    cd /opt/redis/conf
cp redis-6379.conf redis-6371.conf
cp redis-6379.conf redis-6372.conf
cp redis-6379.conf redis-6373.conf

sed -i \
    -e 's/6379/6371/g' \
    -e '/daemonize/cdaemonize no' \
    -e '/supervised/csupervised systemd' \
    -e '/requirepass/crequirepass 123456' \
    -e '/masterauth/cmasterauth 123456' \
    -e '/cluster/s/^#//' \
    redis-6371.conf

sed -i \
    -e 's/6379/6372/g' \
    -e '/daemonize/cdaemonize no' \
    -e '/supervised/csupervised systemd' \
    -e '/requirepass/crequirepass 123456' \
    -e '/masterauth/cmasterauth 123456' \
    -e '/cluster/s/^#//' \
    redis-6372.conf

sed -i \
    -e 's/6379/6373/g' \
    -e '/daemonize/cdaemonize no' \
    -e '/supervised/csupervised systemd' \
    -e '/requirepass/crequirepass 123456' \
    -e '/masterauth/cmasterauth 123456' \
    -e '/cluster/s/^#//' \
    redis-6373.conf

  • 创建日志目录和数据目录

    1
2

    cd /opt/redis
mkdir -p db-{6371..6373} log

  • 创建 /opt/redis/redis@.service，内容如下

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

    [Unit]
Description=Redis cluster -- node %i
After=network.target

[Service]
WorkingDirectory=/opt/redis
ExecStart=/opt/redis/bin/redis-server conf/redis-%i.conf
Restart=on-failure
RestartSec=2

[Install]
WantedBy=multi-user.target

部署

  • 把 /opt/redis 目录复制到 10.0.4.110 和 10.0.4.111 上

    1
2

    scp -r /opt/redis 10.0.4.110:/opt/
scp -r /opt/redis 10.0.4.111:/opt/

  • 在 10.0.4.110 和 10.0.4.111 上都执行以下操作

    1
2

    cp /opt/redis/redis@.service /usr/lib/systemd/system/
systemctl daemon-reload

  • 在 10.0.4.110 和 10.0.4.111 上配置实例开机启动

    1
2
3

    systemctl enable redis@6371
systemctl enable redis@6372
systemctl enable redis@6373

  • 在 10.0.4.110 和 10.0.4.111 上启动全部实例

    1
2
3

    systemctl start redis@6371
systemctl start redis@6372
systemctl start redis@6373

配置集群

  • 在 10.0.4.110 上创建集群，指定三个 master 实例

    1
2

    /opt/redis/bin/redis-cli -a 123456 --no-auth-warning \
    --cluster create 10.0.4.110:6371 10.0.4.110:6372 10.0.4.110:6373

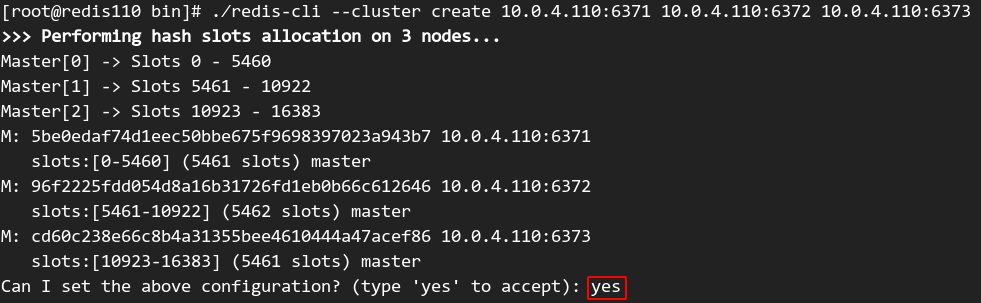

  • 输出如下图

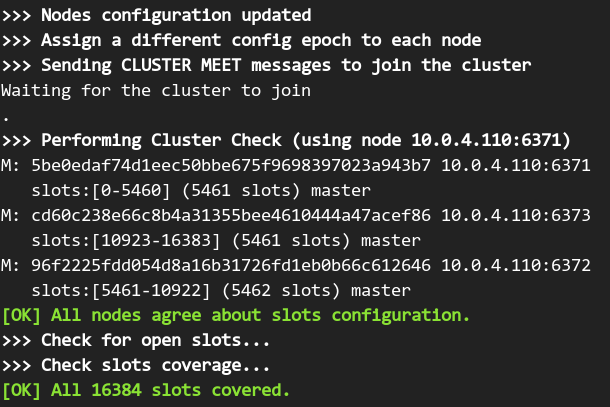

  • 同意配置，输入 “yes”，回车后输出如下图

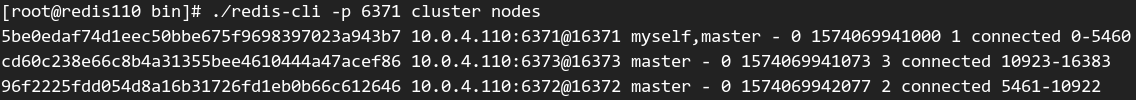

  • 查看集群当前实例

    1
2

    /opt/redis/bin/redis-cli -a 123456 --no-auth-warning -p 6371 cluster nodes
# 这里保存好各个 master 节点的 id，下面增加 slave 节点时会用到

  • 输出如下图

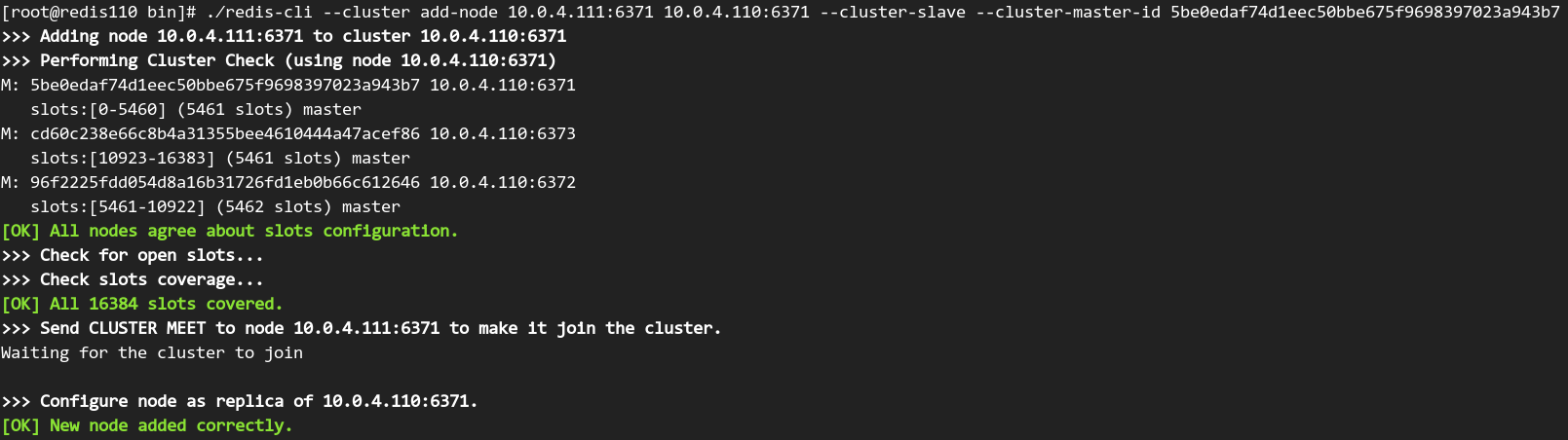

  • 添加 slave 实例 10.0.4.111:6371，同步 master 10.0.4.110:6371

    1
2
3
4
5
6
7

    /opt/redis/bin/redis-cli -a 123456 --no-auth-warning \
    --cluster add-node 10.0.4.111:6371 10.0.4.110:6371 \
    --cluster-slave \
    --cluster-master-id 5be0edaf74d1eec50bbe675f9698397023a943b7
# 上述命令中，10.0.4.111:6371 是待添加实例，10.0.4.110:6371 是已存在集群中的任一实例
# --cluster-slave 指定添加 slave 实例
# --cluster-master-id 指定 10.0.4.110:6371 的 id，即本次添加实例的 master

  • 输出如下图

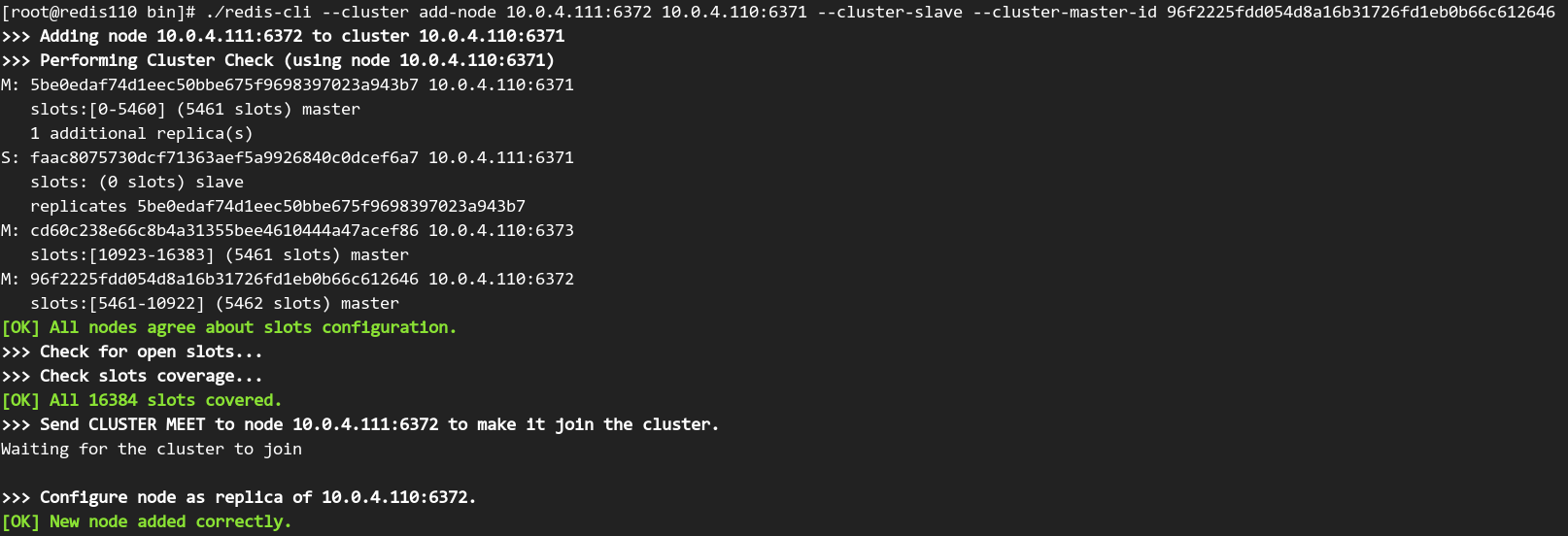

  • 添加 slave 实例 10.0.4.111:6372，同步 master 10.0.4.110:6372

    1
2
3
4

    /opt/redis/bin/redis-cli -a 123456 --no-auth-warning \
    --cluster add-node 10.0.4.111:6372 10.0.4.110:6371 \
    --cluster-slave \
    --cluster-master-id 96f2225fdd054d8a16b31726fd1eb0b66c612646

  • 输出如下图

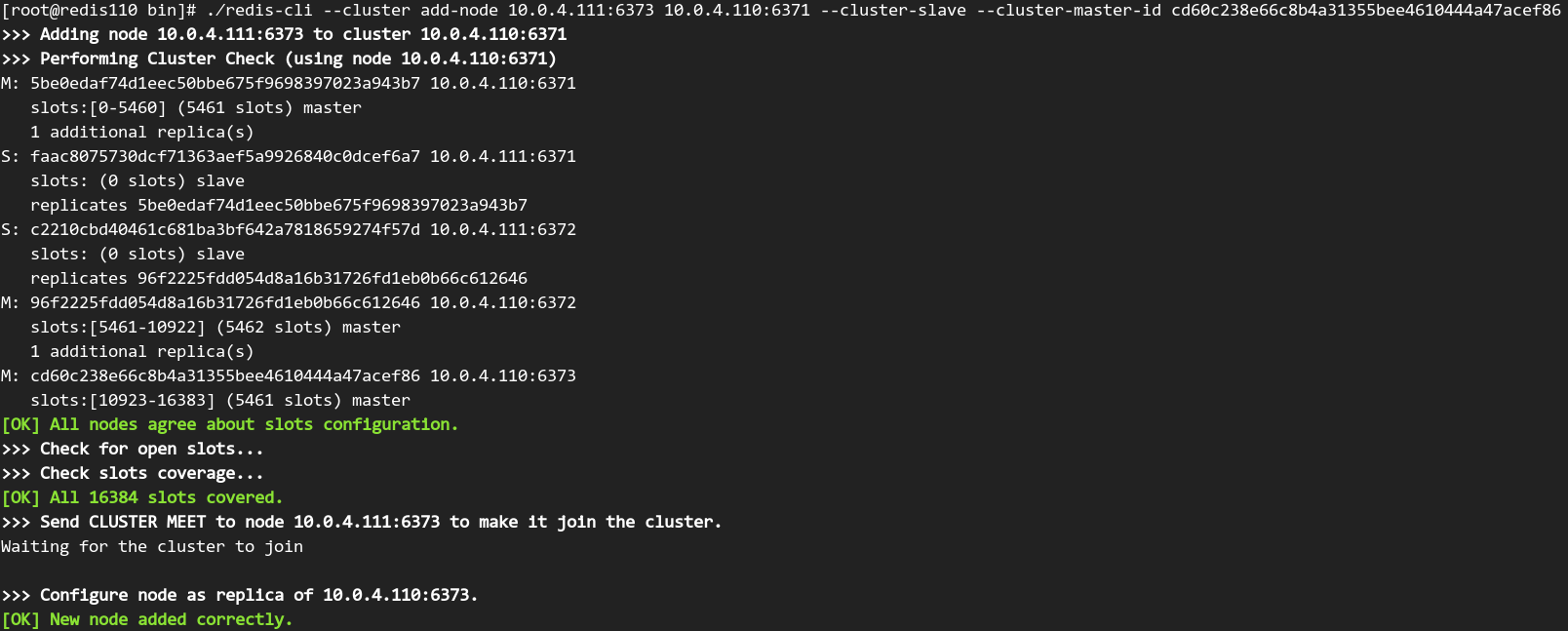

  • 添加 slave 实例 10.0.4.111:6373，同步 master 10.0.4.110:6373

    1
2
3
4

    /opt/redis/bin/redis-cli -a 123456 --no-auth-warning \
    --cluster add-node 10.0.4.111:6373 10.0.4.110:6371 \
    --cluster-slave \
    --cluster-master-id cd60c238e66c8b4a31355bee4610444a47acef86

  • 输出如下图

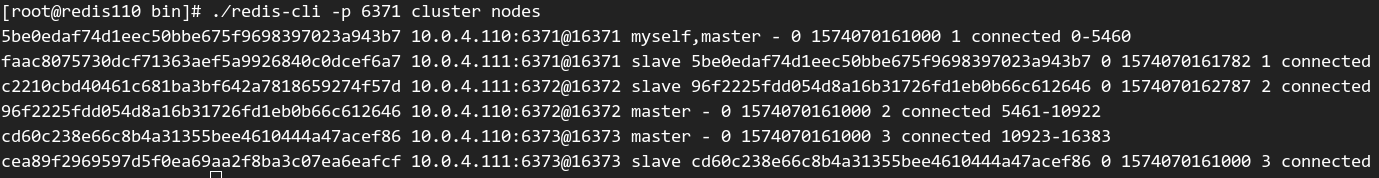

  • 查看集群当前实例

    1

    /opt/redis/bin/redis-cli -a 123456 --no-auth-warning -p 6371 cluster nodes

  • 输出如下图

Docker 部署

  • 安装 docker-ce，参考这里

  • 安装 docker-compose，参考这里

  • 选择一个较大分区，创建 redis 集群数据目录和日志目录

    1

    mkdir -p redis_cluster/{db,log}/{6371..6376}

  • 在同级目录下创建 docker-compose.yml 文件，内容如下

      1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135

    version: "3.7"

services:
  redis-6371:
    image: harbor.colben.cn/general/alpine-redis
    container_name: redis-6371
    restart: on-failure
    stop_grace_period: 1m
    privileged: true
    network_mode: "host"
    environment:
      _CENV_cluster-enabled: "yes"
      _CENV_port: 6371
      _CENV_maxmemory: 256MB
      # master 和 slave 实例的密码必须一致，可都为空
      _CENV_masterauth: Pass_1234
      _CENV_requirepass: Pass_1234
      # master 节点列表
      MASTER_NODES: "127.0.0.1:6371 127.0.0.1:6372 127.0.0.1:6373"
      # slave 节点列表
      # 可以为空，表示没有 slave 节点
      # 不为空时，数量必须与 master 节点数量一致，按顺序依次为 master 节点的从节点
      SLAVE_NODES: "127.0.0.1:6374 127.0.0.1:6375 127.0.0.1:6376"
    volumes:
    - type: bind
      source: ./redis_cluster/db/6371
      target: /var/lib/redis
    - type: bind
      source: ./redis_cluster/log/6371
      target: /var/log/redis

  redis-6372:
    image: harbor.colben.cn/general/alpine-redis
    container_name: redis-6372
    restart: on-failure
    stop_grace_period: 1m
    privileged: true
    network_mode: "host"
    environment:
      _CENV_cluster-enabled: "yes"
      _CENV_port: 6372
      _CENV_maxmemory: 256MB
      _CENV_masterauth: Pass_1234
      _CENV_requirepass: Pass_1234
    volumes:
    - type: bind
      source: ./redis_cluster/db/6372
      target: /var/lib/redis
    - type: bind
      source: ./redis_cluster/log/6372
      target: /var/log/redis

  redis-6373:
    image: harbor.colben.cn/general/alpine-redis
    container_name: redis-6373
    restart: on-failure
    stop_grace_period: 1m
    privileged: true
    network_mode: "host"
    environment:
      _CENV_cluster-enabled: "yes"
      _CENV_port: 6373
      _CENV_maxmemory: 256MB
      _CENV_masterauth: Pass_1234
      _CENV_requirepass: Pass_1234
    volumes:
    - type: bind
      source: ./redis_cluster/db/6373
      target: /var/lib/redis
    - type: bind
      source: ./redis_cluster/log/6373
      target: /var/log/redis

  redis-6374:
    image: harbor.colben.cn/general/alpine-redis
    container_name: redis-6374
    restart: on-failure
    stop_grace_period: 1m
    privileged: true
    network_mode: "host"
    environment:
      _CENV_cluster-enabled: "yes"
      _CENV_port: 6374
      _CENV_maxmemory: 256MB
      _CENV_masterauth: Pass_1234
      _CENV_requirepass: Pass_1234
    volumes:
    - type: bind
      source: ./redis_cluster/db/6374
      target: /var/lib/redis
    - type: bind
      source: ./redis_cluster/log/6374
      target: /var/log/redis

  redis-6375:
    image: harbor.colben.cn/general/alpine-redis
    container_name: redis-6375
    restart: on-failure
    stop_grace_period: 1m
    privileged: true
    network_mode: "host"
    environment:
      _CENV_cluster-enabled: "yes"
      _CENV_port: 6375
      _CENV_maxmemory: 256MB
      _CENV_masterauth: Pass_1234
      _CENV_requirepass: Pass_1234
    volumes:
    - type: bind
      source: ./redis_cluster/db/6375
      target: /var/lib/redis
    - type: bind
      source: ./redis_cluster/log/6375
      target: /var/log/redis

  redis-6376:
    image: harbor.colben.cn/general/alpine-redis
    container_name: redis-6376
    restart: on-failure
    stop_grace_period: 1m
    privileged: true
    network_mode: "host"
    environment:
      _CENV_cluster-enabled: "yes"
      _CENV_port: 6376
      _CENV_maxmemory: 256MB
      _CENV_masterauth: Pass_1234
      _CENV_requirepass: Pass_1234
    volumes:
    - type: bind
      source: ./redis_cluster/db/6376
      target: /var/lib/redis
    - type: bind
      source: ./redis_cluster/log/6376
      target: /var/log/redis

  • 启动 redis 集群

    1

    docker-compose up -d
